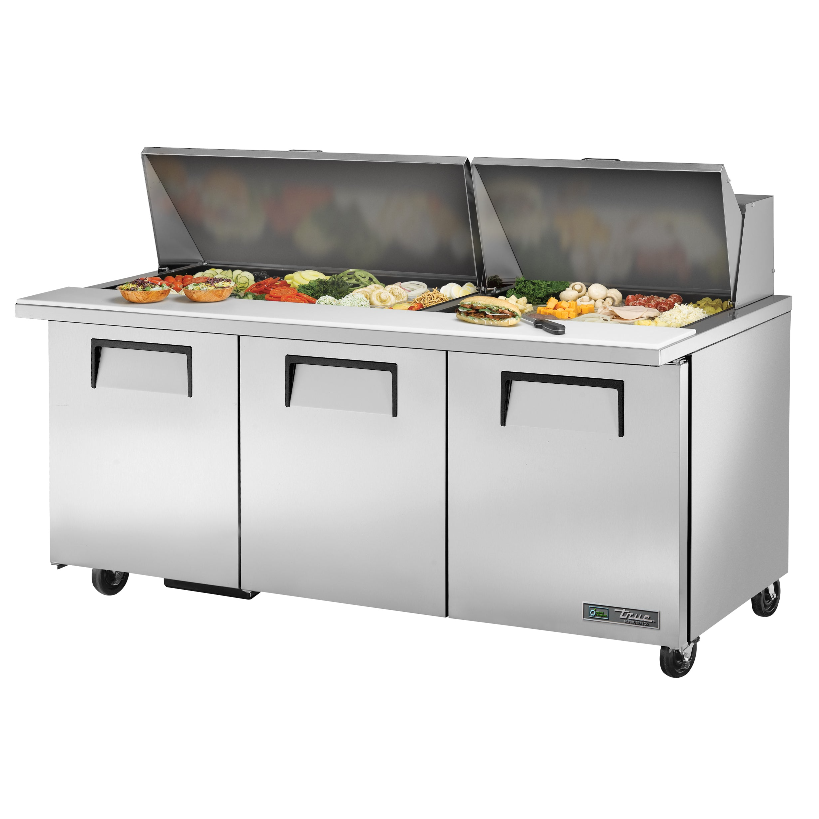

True 72" Sandwich / Salad 30 Pan Refrigerated Prep Table Megatop, 3 Doors

FEATURES:

DESIGN

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety, and the best value in today’s foodservice marketplace

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• Energy-efficient, factory balanced refrigeration system with guided airflow to provide uniform temperature in food pans and cabinet interior.
• Patented forced-air design holds 33°F to 41°F (.5°C to 5°C) product temperature in food pans and cabinet interior. Complies with and is listed under ANSI/NSF-7.
• Sealed, self-lubricating evaporator fan motor and larger fan blades give True sandwich/salad units a more efficient, low velocity, high volume airflow design.
• Condensing unit access in the back of the cabinet slides out for easy maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front, top, and ends. Corrosion-resistant GalFan coated steel back.
• Interior - attractive, NSF approved, clear coated aluminum liner. Stainless steel floor with coved corners.
• Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• 5" (127 mm) diameter stem castors - locks provided on front set. 36" (915 mm) work surface height.

DOORS

• Stainless steel exterior with a clear aluminum liner to match cabinet interior.
• Each door is fitted with a 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
• Positive seal self-closing doors with 90° stay open feature. Doors swing within cabinet dimensions.
• Magnetic door gaskets of one-piece construction, removable without tools for ease of cleaning.

SHELVING

• Six (6) adjustable, heavy-duty PVC coated wire shelves. Two (2) right and two (2) left door shelf dimensions are 21 9/16"L x 16" D (548 mm x 407 mm). Two (2) center door shelf dimensions are 23 1/2"L x 16"D (597 mm x 407 mm). Four (4) chrome plated shelf clips are included per shelf.
• Shelf support pilasters are made of the same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

MODEL FEATURES

• The evaporator is epoxy coated to eliminate the potential for corrosion.
• 8 7/8" (226 mm) deep,1/2" (13 mm) thick, full-length removable cutting board. Sanitary, high-density, NSF-approved white polyethylene provides a tough preparation surface.
• Stainless steel, patented, foam insulated lids, and hood keep pan temperatures colder, lock in freshness and minimize condensation. Removable for easy cleaning.
• Comes standard with 30 (1/6size) 6 7/8"L x 6 1/4” W x 4" D (175 mm x 159 mm x 102 mm) clear polycarbonate, NSF approved, food pans in
  countertop prep area. Also accommodates 6" (153 mm) deep food pans (supplied by others).
• Countertop pan opening designed to fit varying size pan configurations with available pan divider bars. Varying size pans supplied by others.
• NSF/ANSI Standard 7 compliant for open food products.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

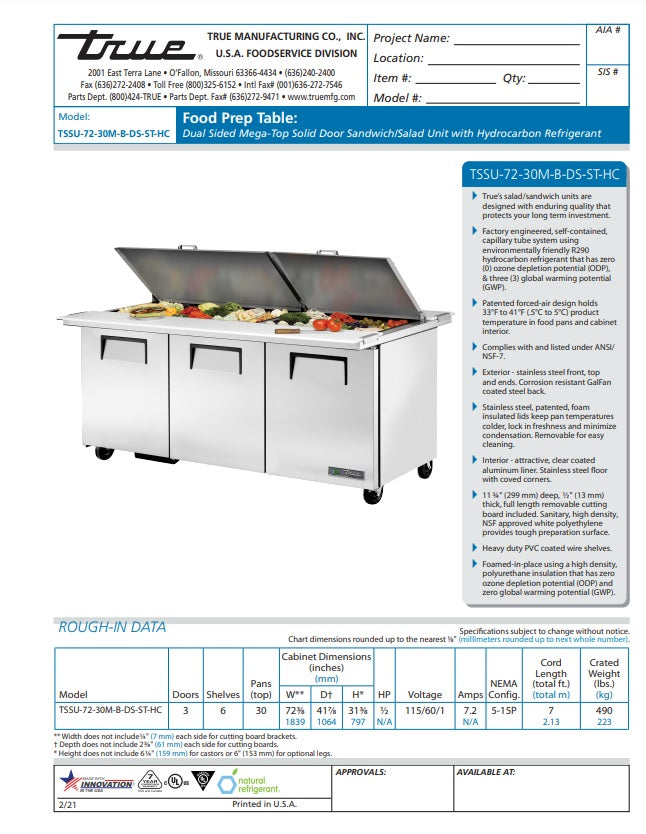

SPECIFICATIONS:

• Doors: 3
• Shelves: 6
• Pans (Top): 30
• Width: 72 3/8"
• Depth: 34 1/8"
• Height: 40 3/8"
• HP: 1/2
• Voltage: 115/60/1
• Amps: 7.2
