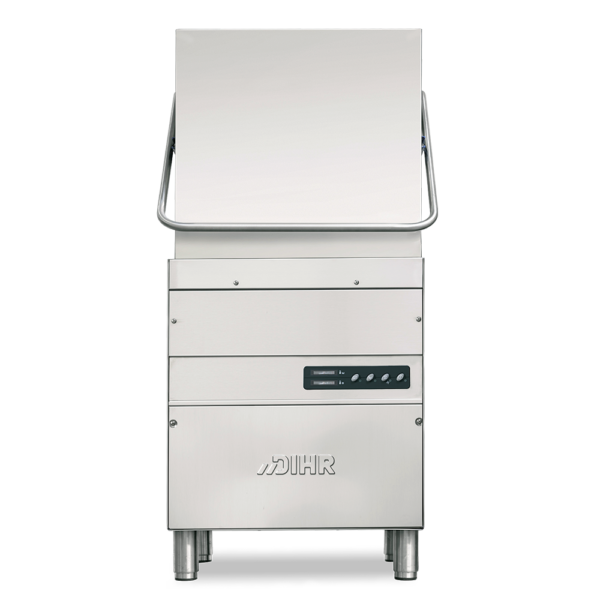

DIHR High Temperature Hood Type Upright Dishwasher, 70 Racks /Hour

Product Overview:

The DIHR hood-type dishwashers offer a wide range of models, from the ones that can be equipped with the most advanced options, to the most innovative types, designed with avant-garde electronics and with all options included. Their products have evolved together with their experience and our customers’ hints and insights. Therefore they are able to produce tailor-made models that fulfil there final customers’ criteria of
functionality, reliability and versatility. DIHR's aim is to reduce consumptions in terms of
energy, water and chemical products, therefore granting the final user global savings, but also less pollution and waste of natural resources.

New High-Tech Backlit Display

This new intuitive technology with colored icons, combined with a handy multi-color START, make the machine simple and efficient to use. In addition, the introduction of the new ‘customizable cycles’ function allows the installer to easily change all parameters related to the wash phase, pause and rinse length and temperatures according to the
user’s needs. The LED display provides information on the current status of the machine and on ongoing events such as errors, anomalies, temperatures, cycle selection, cycle progression, lack of salt if water softener included and many other indicators depending on the options selected during the configuration phase.

HR - Energy Recovery

The ENERGY RECOVERY system uses the heat produced by the machine to pre-heat the inlet cold water. This is an immediate saving of about 35% on energy costs. Additionally, an optimal temperature in the dishwashing area is achieved as the air is no more affected by steam and humidity.

Features:

• Double walled 304 stainless steel structure, 316 grade boiler.
• Two wash cycles 120 and 180 seconds, partial drain to save water, power and chemicals.
• Overflow and drain system has triple filters to protect the main pump.
• Long lasting split s/s wash and rinse arms are interchangeable for easy assembly after cleaning.
• Hood operated start and stop functions for ease of use.
• Comes complete with detergent, rinse and drain pumps.
• Straight through or corner applications, very simple to change.
• Anti drip roof design to reduce spotting.
• Available in 220-240v, single or triple phase, single is stocked in Canada, 4S.6 amps.
• Certified by ETL, CSA and NSF to the highest standard. Comes with three gauges for wash temp, rinse temp and water pressure.
• Comes with three racks and two cutlery cylinders.
• Three Years Warranty, one year parts and labour, additional two years on major components.
